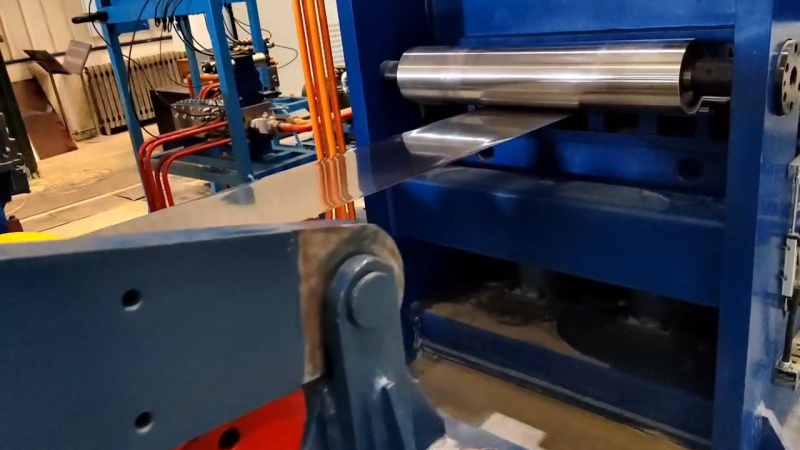

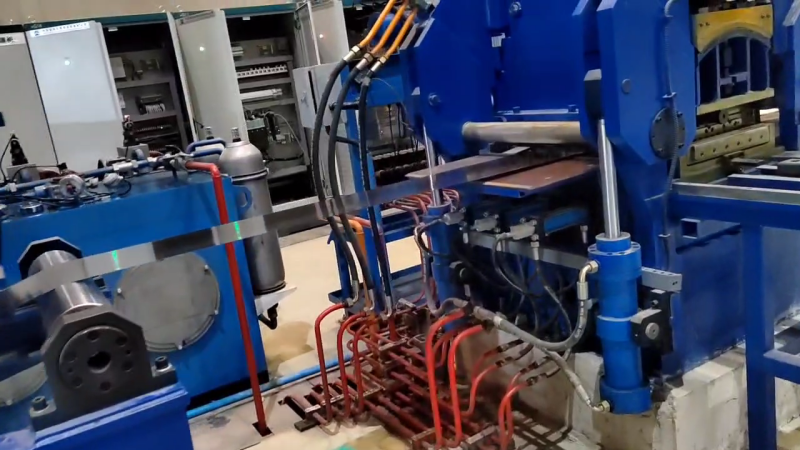

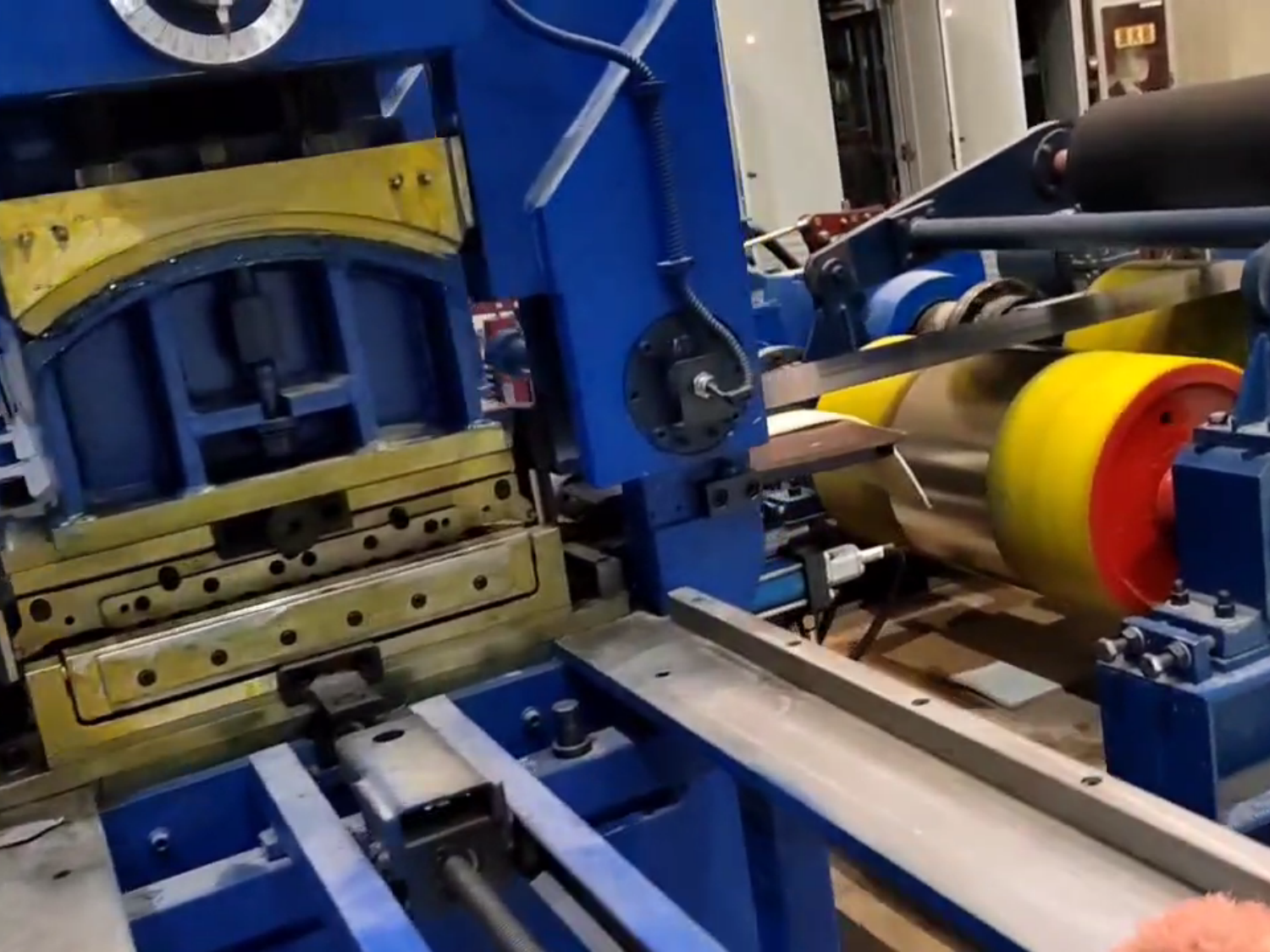

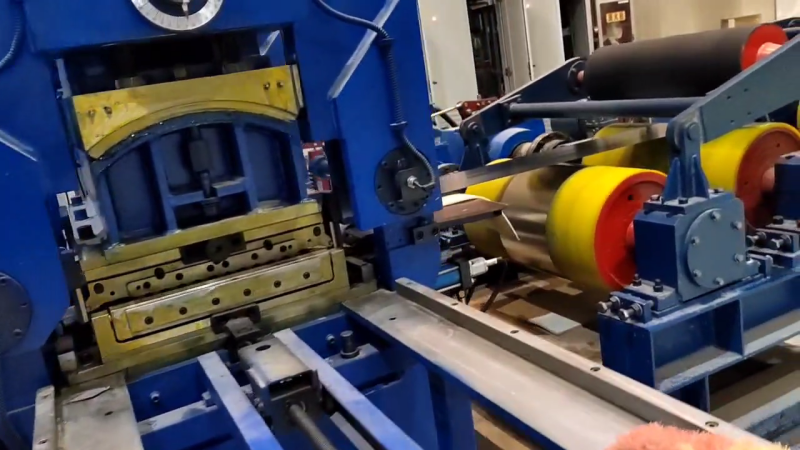

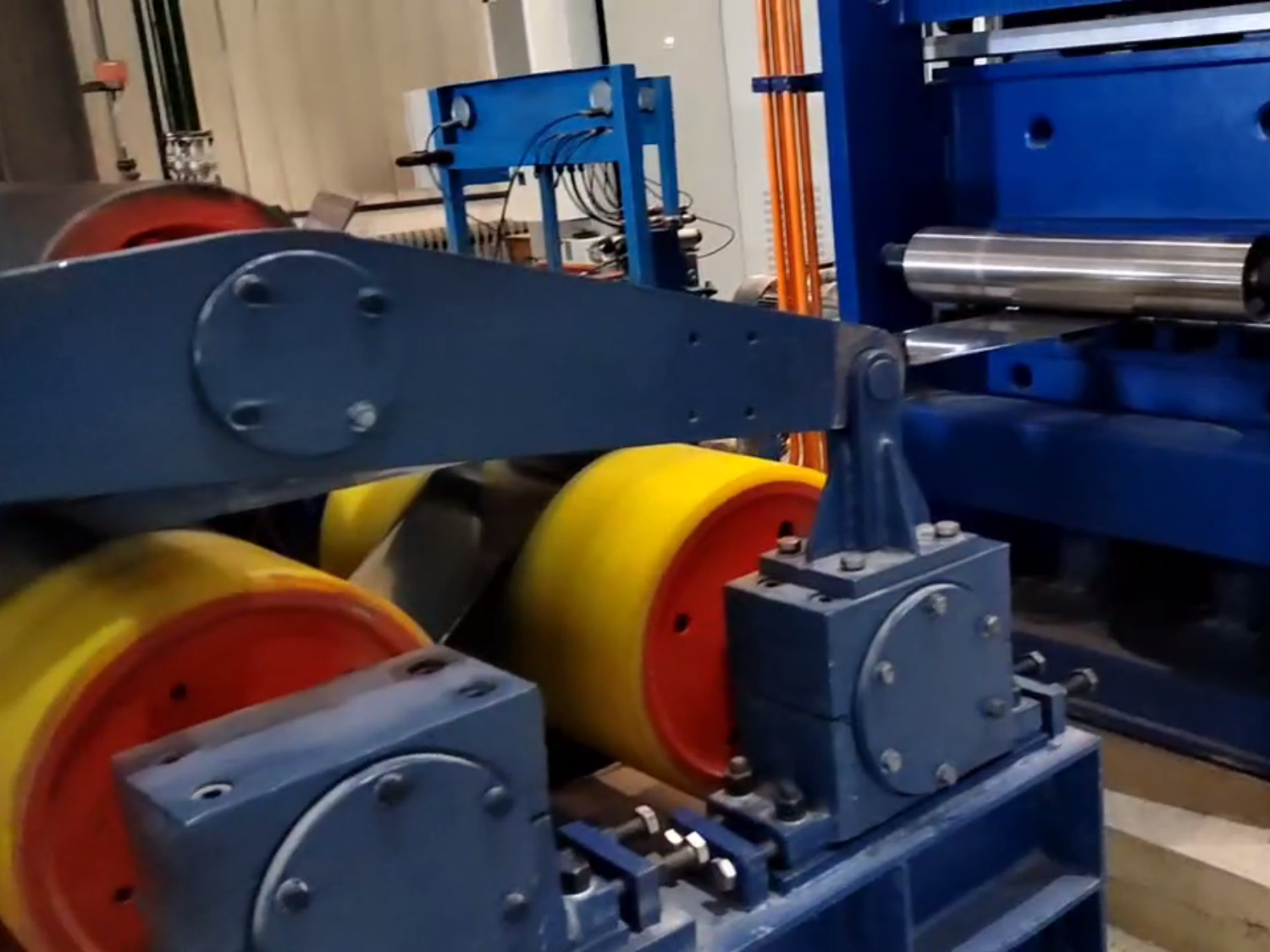

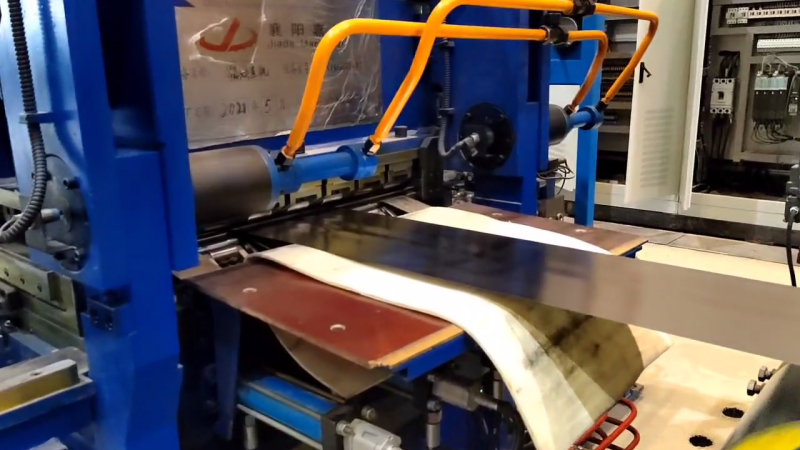

Recoiling Line, used for division and combination of steel coils. In order to improve the production efficiency of the cold rolling mill, a recoiler is used to trim and recoil the steel strip on-line. The recoiler is mainly composed of uncoiler, inlet pinch deflection guide roller, trimming shear, entrance flattening roller, disc shear, crusher, exit flattening roller, hydraulic tail cutting shear, exit deflector roller and coiler and other equipment.

The annual production capacity of the recoiling unit is 250,000 tons. It can produce cold coils of CQ, DQ, DDQ and other varieties. The specifications are 0.35~2.0 mm X 800~1350 mm. Product performance: tensile strength max 500N/mm2, yield strength max 300 N/mm2, the design process speed of the unit is up to 220 m/min.

Main Technical Parameters
