Stainless Steel Multi-Roll Tension Leveler Line

This stainless steel multi-roll tension leveler line is applicable to SUS200/300/400 stainless steel strips in annealed soft or degreased cold-hardened state with thickness 0.08~2.0mm and width 350~2500mm, operating at a maximum speed of 300m/min to stretch, bend and straighten coils for superior flatness.

Inquiry

E-mail：robin20076@hotmail.com

WhatsApp：+8618972225022

Detailed Description

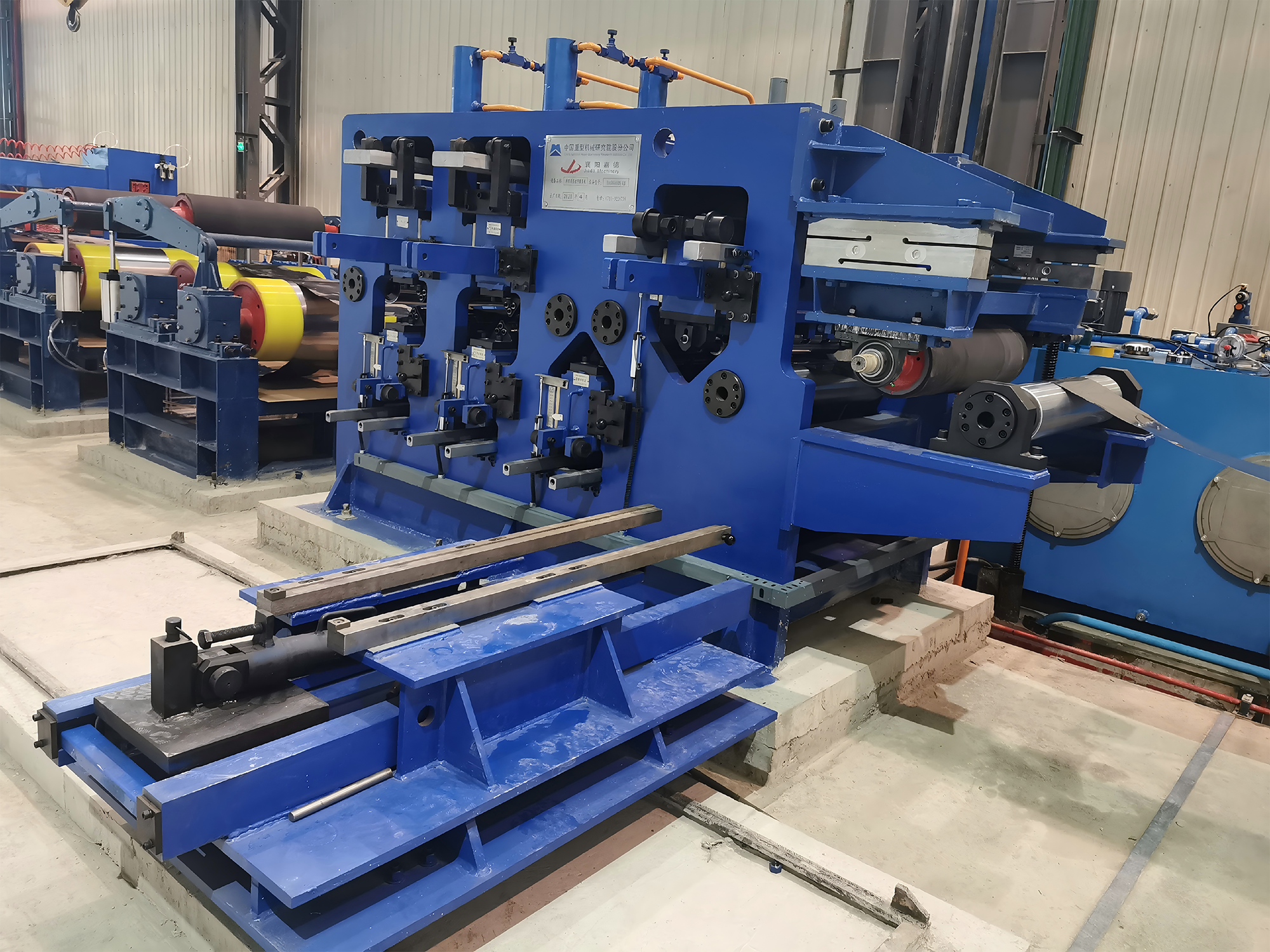

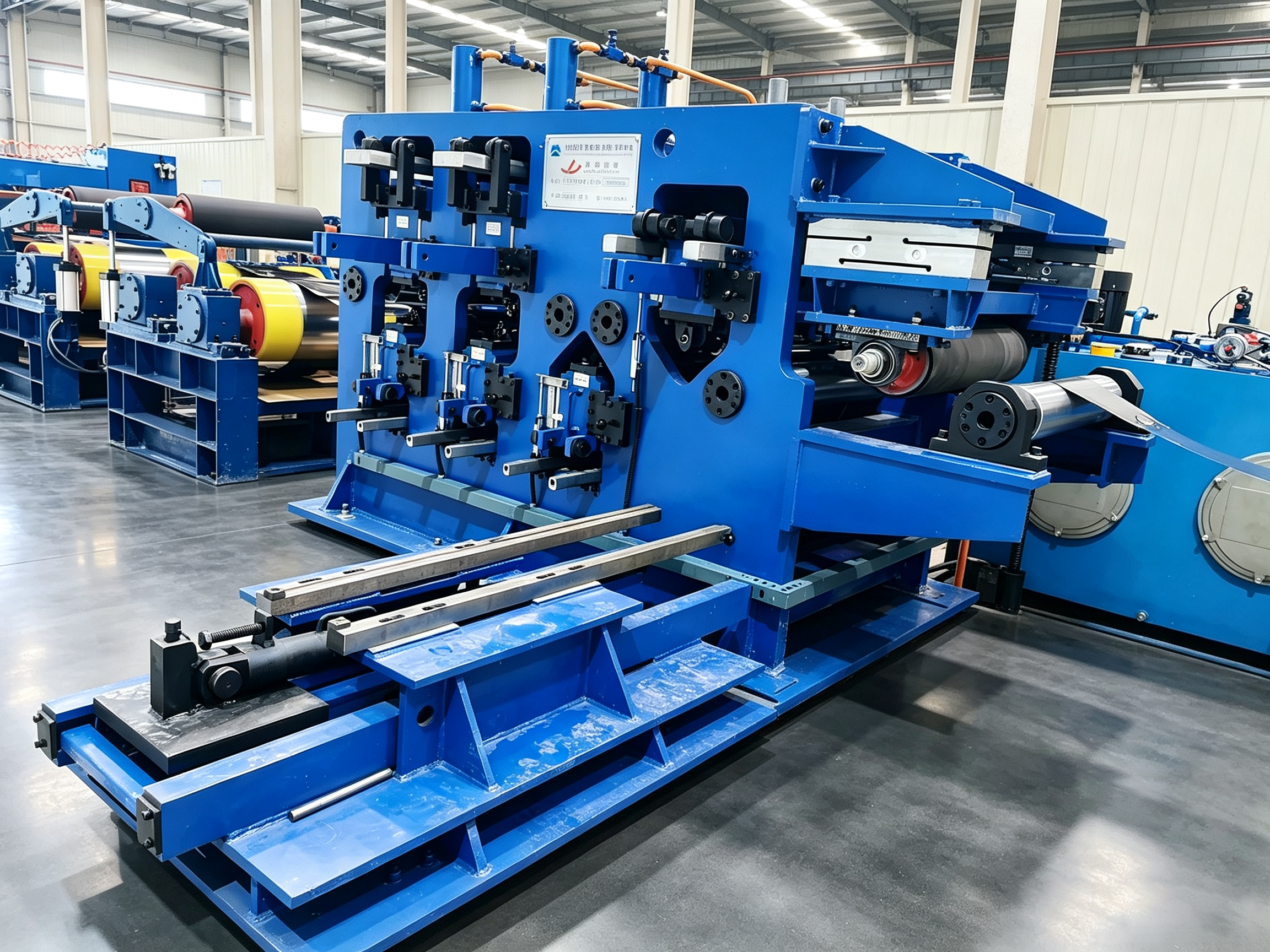

Stainless steel multi-roll Tension Leveler line

Stainless steel multi-roller Tension Leveling line is suitable for carbon steel, precision stainless steel strip etc, width within 2500mm and thickness within 0.08~2.0mm stainless steel strip in coil softened state after annealing and cold-rolled hard state after degreasing, stretching, bending, and straightening by this mill to improve the strip shape.

Stainless steel muti-roll tension leveler line2.png

Mill features

1.Material: stainless steel series SUS200, SUS300 and SUS400

2.State and physical properties of materials: The strips to be straightened are in post-annealing soft -condition or lubricant-free cold -rolled hard -condition.

Main Technical Parameters

Materials	SUS200, SUS300, SUS400 series stainless steel etc.
Material physical properties and state	The tension-leveling strip is softened state after annealing and cold-rolled hard state after degreasing.
Tensile strength	σb=590~1470MPa
Yield stregth	σs=280~1120MPa
Metal thickness	0.08~2.0mm
Metal width	350~2500 mm
Designed speed	max.300m/min
