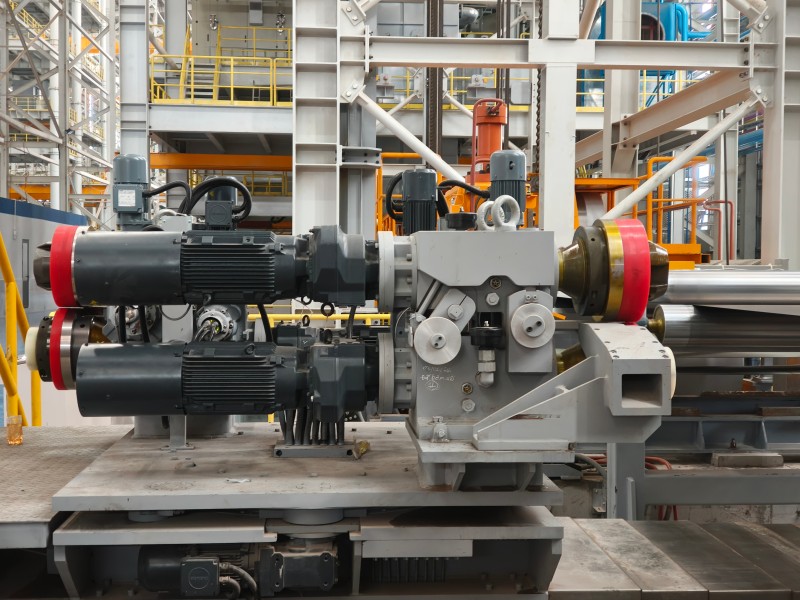

High-Precision Side Trimmer & Scrap Processing System

JiaDe Engineering Series

1. Jiade Edge trimming of the strip answer to two significant requests: eliminating strip edge defects and giving precise width tolerance to produced coil. Whether integrated into a high-speed Continuous Galvanizing Line (CGL) or a Pickling Line (PL)

With many years of experience on Processing Lines from Pickling Lines/Tandem Cold Mills to Inspection Lines, JiaDe Side Trimmer and Scrap Machines have been designed and developed with the target to deliver the best strip edge cutting quality for you carbon steel, stainless steel and aluminum producing line.

JiaDe Side edge trimmer works closely with its clients to develop, mount and commission in its factory these technologies to ensure the best integration into your Processing Lines.

2. Key Performance Indicators (KPIs)

JiaDe machines are engineered for extreme precision to meet automotive exposed quality standards.

3. Technical Specifications

4. Machine Configurations

We offer tailored solutions based on your production continuity requirements.

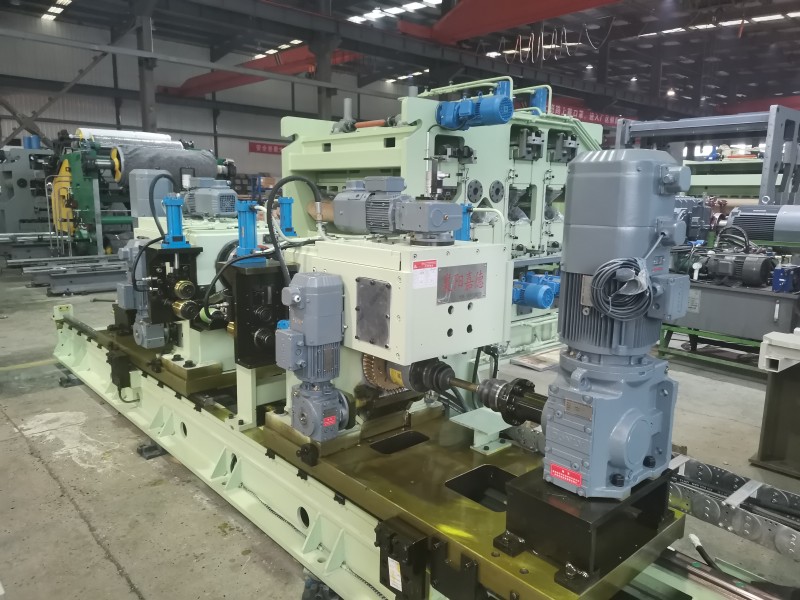

4.1 Standard Single-Head Type

· Description: A robust, single-cutter arbor design.

· Benefit: Most economical solution with a compact footprint.

· Application: Batch production lines or lines with scheduled downtime.

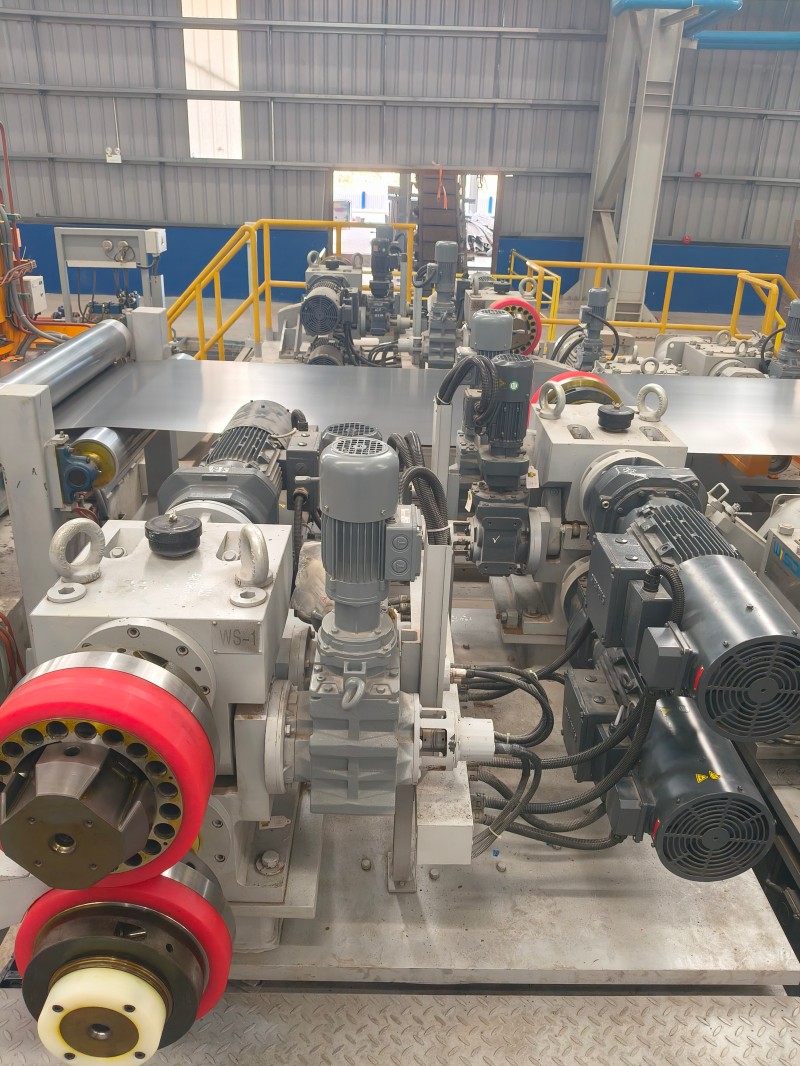

4.2 Turret-Type (Dual-Head)

· Description: Each side is equipped with two cutter heads (A & B). While Head A is in operation, Head B is prepared offline. The unit rotates automatically to swap positions.

· Benefit: True non-stop production. No need to halt the line for blade changes.

· Application: High-throughput continuous lines (24/7 operations).

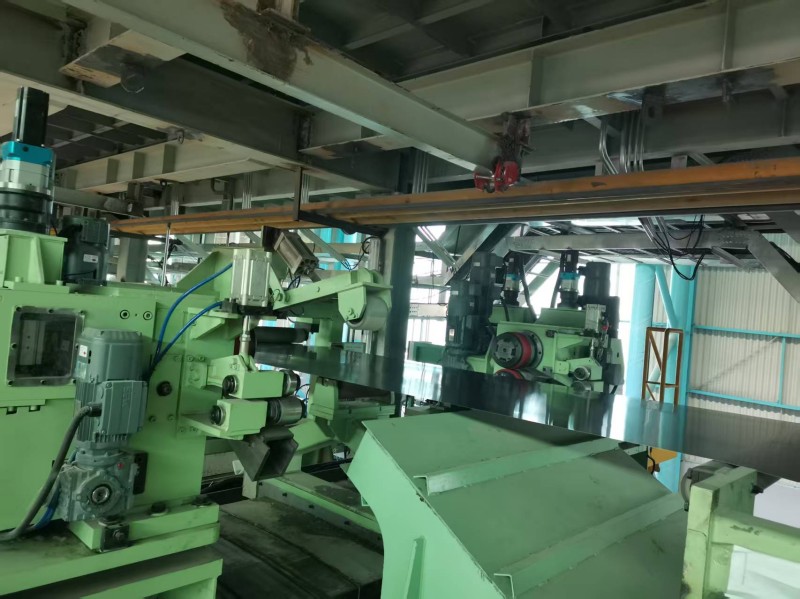

4.3 Automatic Rotary Knife Changer

· Description: An automated system that exchanges blades via a remote-controlled knife box. It automatically stacks old blades and retrieves new ones.

· Benefit: Maximum Safety & Speed. Operators perform changes from outside the safety fence. Gap and lap adjustments are automated.

· Application: Smart factories focusing on labor efficiency and safety compliance (CE Standard).

5. Scrap Handling Solutions

Optimized for specific strip thickness and line speeds to ensure smooth logistics.

6. Equipment Features

· Dynamic Width Adjustment: Adjusts trimming width continuously the strip width cutting without having to stop the line

· Edge Monitoring System: Optimizes trimmer settings in real-time to adapt to different product mixes.

· Strip edge improvement

· Increase of line availability and productivity

· Improvement of edge scrap transportation

· Possibility to manage knife life and history

Easy adjustment of GAP, LAP and Width

7. Customer Value Proposition

JiaDe provides comprehensive support from factory mounting and commissioning to ensure seamless integration into your processing line.
