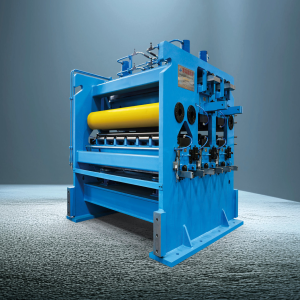

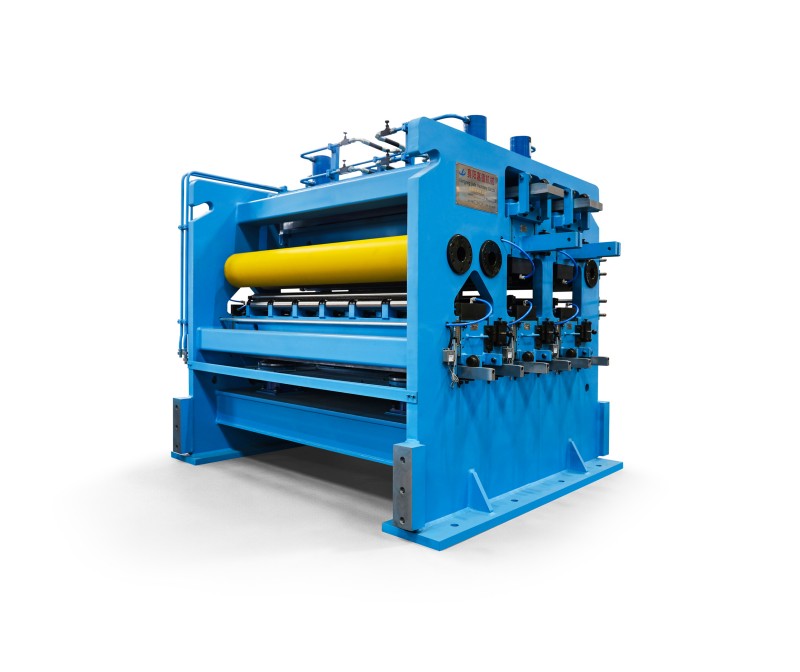

Precision & Efficiency: Aluminum Strip Tension Leveler

Engineered specifically for aluminum strip processing, this tension Leveler addresses the unique challenges of non-ferrous metal flattening, distinguishing itself from standard steel coil levelers.

Technical Specifications:

· Material: Aluminum & Aluminum Alloys

· Dimensions: Thickness 0.2~4.0mm

·            Width 1250~2500mm

· Line Speed: Max. 500 m/min

· Flatness: From incoming ≤ 50 I-Unit to finished 3~5 I-Unit.

Key Feature: Integrated High-Pressure Air Jet System

Unlike tension levelers designed for steel, this machine is equipped with a dedicated high-pressure air jet system. During high-speed operation, the system continuously blows away fine aluminum debris (smut) generated by the leveling process. This prevents surface blemishes caused by debris re-embossing and maintains the precision of the roll gap, ensuring optimal surface finish and extended equipment life.

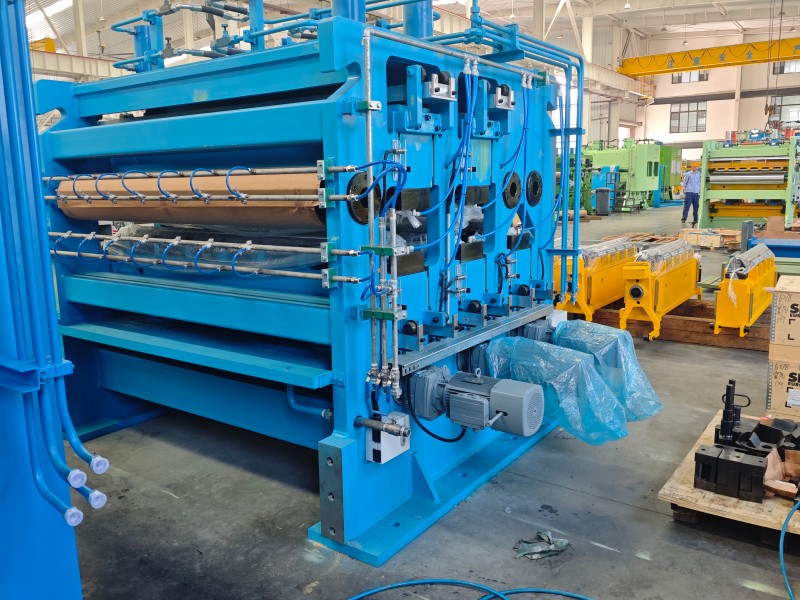

Dedicated High-Pressure Air Jet System

To meet the stringent surface quality requirements in aluminum processing, this aluminum strip tension leveler is equipped as standard with an independent high-pressure air jet cleaning system. Distinct from conventional steel strip levelers, this system is optimized for the specific physical properties of aluminum—its softness, tendency to generate sticky fines, and thin oxide layer.

Core Functions:

· Real-time Aluminum Dust Removal: Strategically positioned adjustable nozzles uniformly inject clean compressed air into the roll bite area, effectively dislodging micron-sized aluminum fines and oxides generated by surface friction.

· Prevention of Surface Impressions: Prevents debris from being rolled back into the strip surface during subsequent leveling passes, thereby avoiding defects such as indentations, scratches, and uneven gloss. This ensures a superior finished surface roughness (Ra ≤ 0.8μm).

· Protection of Roll System Accuracy: Minimizes dust accumulation that can alter the roll gap settings between Work Rolls and backup rolls. This maintains consistent leveling force and extends roll service life.

· Enhanced Operational Stability: Reduces the risk of electrical component contamination caused by airborne dust, significantly improving equipment reliability, especially under high-speed operating conditions (≤500 m/min).

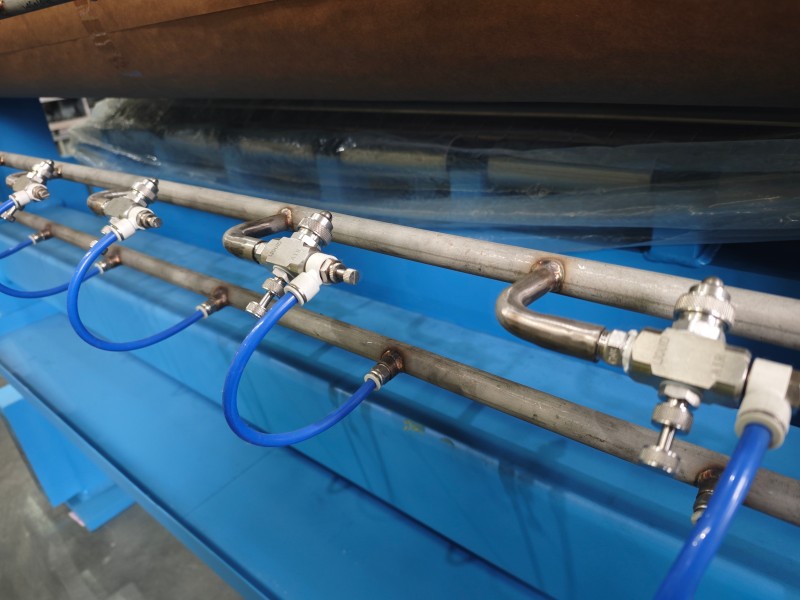

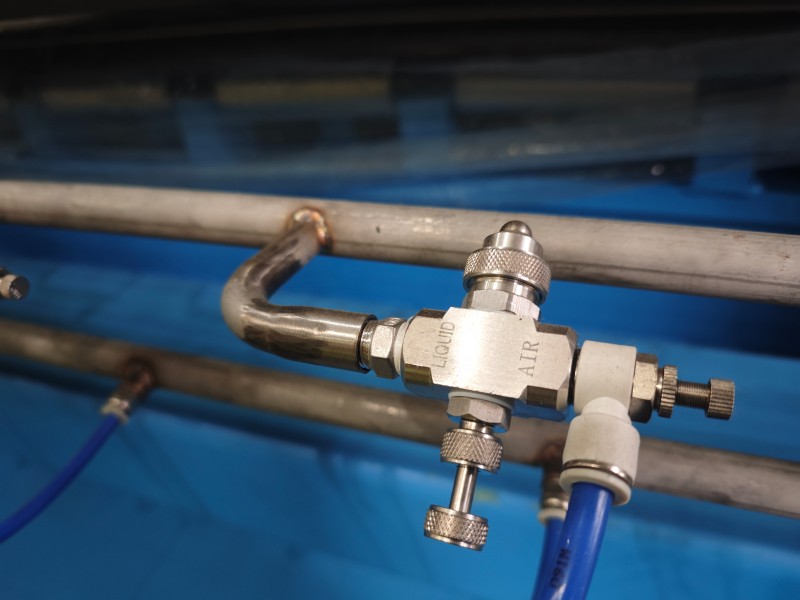

Detail of air blow nozzle

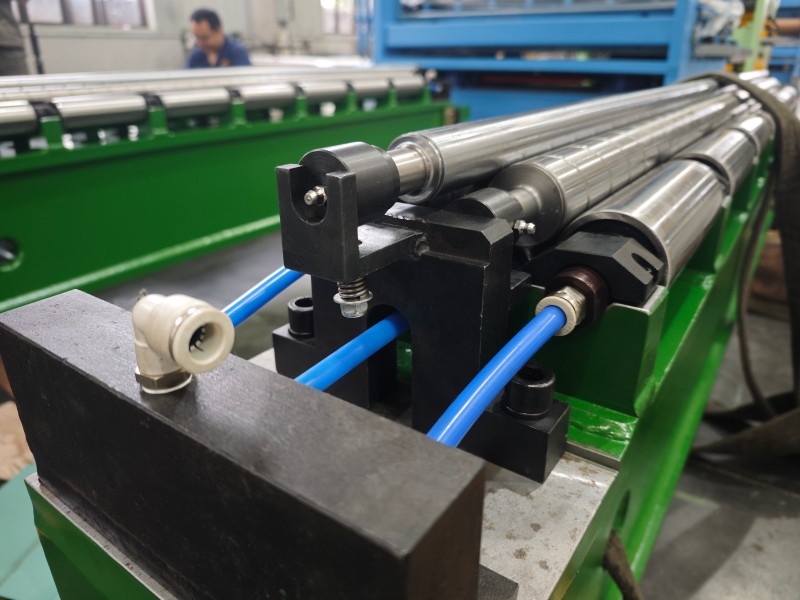

Jiade Special designed roller cassette with air pipe

Nozzle Layout: Symmetrically arranged on both sides of the top and bottom roll gaps, ensuring full-width coverage.

Air Pressure Control: Adjustable from 0.4 to 0.8 MPa to accommodate varying strip thicknesses and line speeds.

Smart Interlocking: Synchronized start/stop functionality with the main drive system for energy-efficient and high-performance operation.

Advantages:

Combining robust mechanical leveling with active surface cleaning, this system delivers stress-free, ultra-flat aluminum coils with pristine surface quality at speeds up to 500 m/min.
