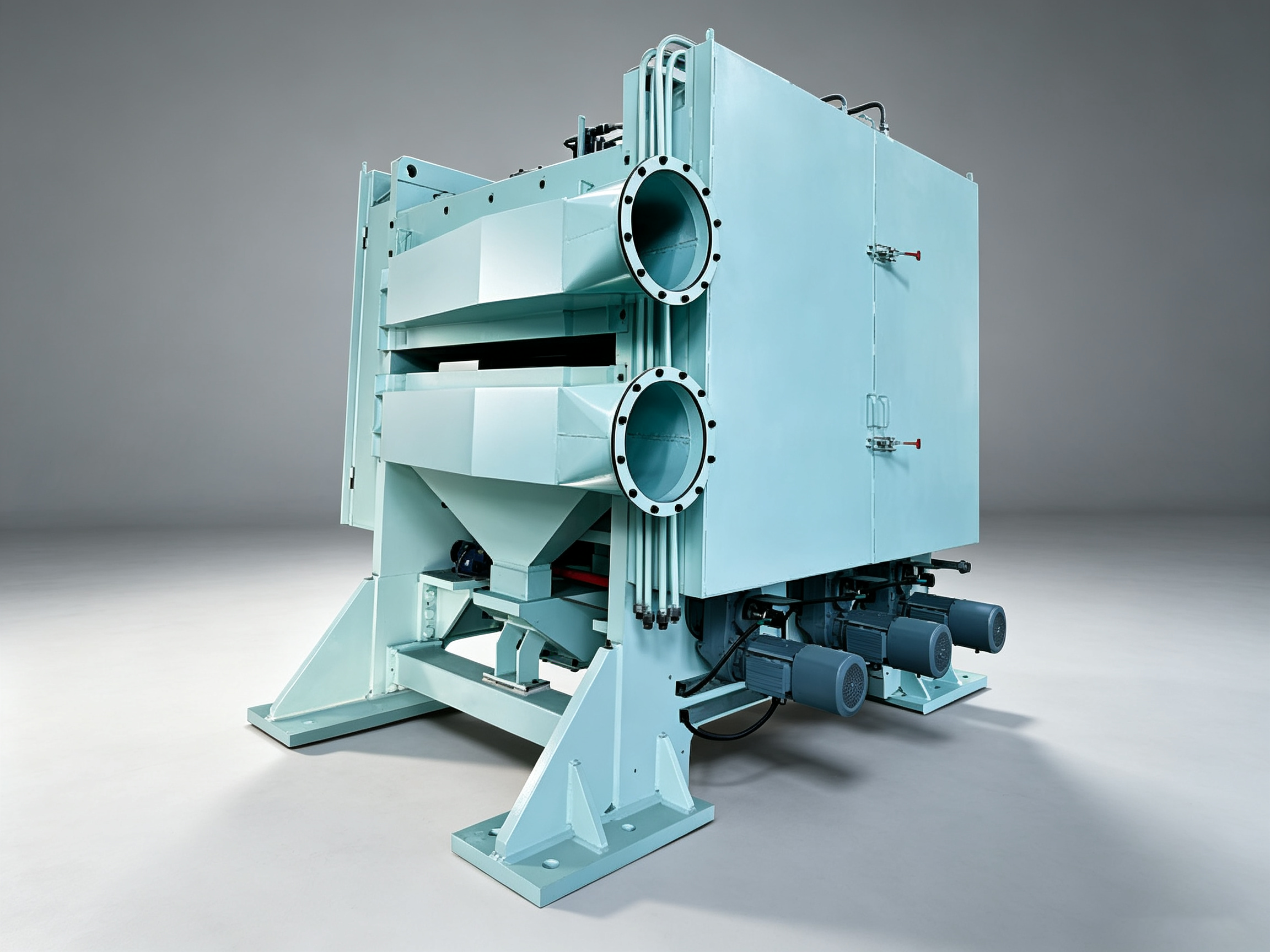

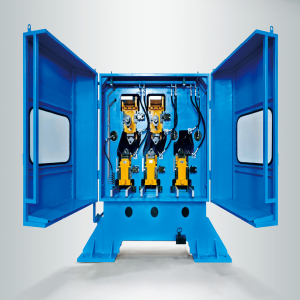

Product Introduction: Jiade Two-Bending & One-Leveling Scale breaker (Vertical Adjust Type Roll cassette)

Core Structural Highlight

This model represents an advanced evolution of the classic "Two-Bending & One-Leveling" process, featuring a Vertical Adjust Type Roll Cassette. Unlike traditional designs relying on bulky housing screws or wedge adjustments, this machine integrates bending and leveling rolls into a sealed, independent cassette. Driven by a high-precision screw-nut mechanism, the cassette moves vertically within the mill stands. This modular architecture simplifies internal mechanics while significantly enhancing adjustment rigidity and response time.

Working Principle

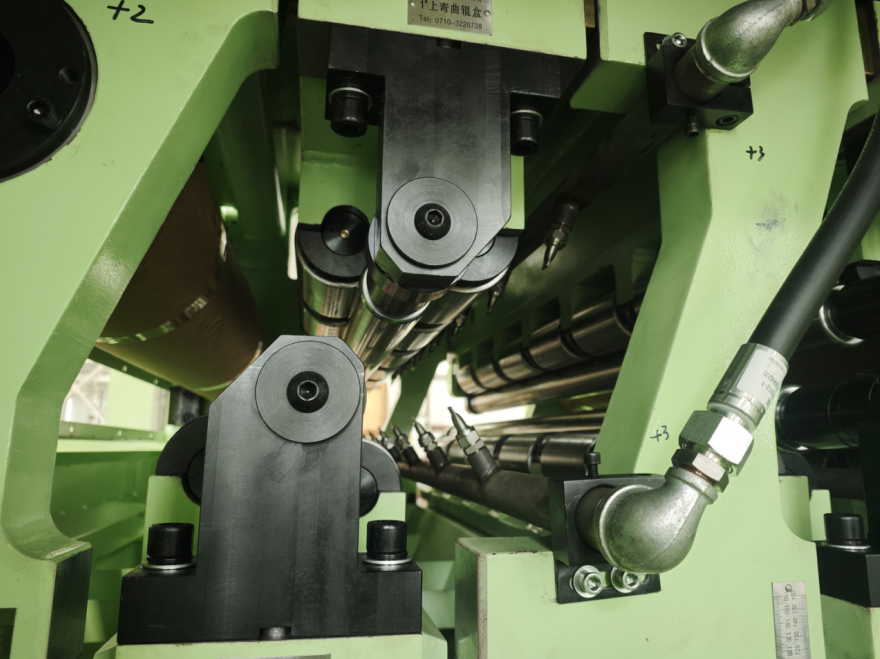

Under longitudinal tension, the strip enters the unit, passing through the first bending cassette where intense reverse bending initiates a network of cracks in the surface oxide scale. It then proceeds to the second bending cassette for further scale loosening. Finally, the strip passes through the vertically adjustable leveling cassette for final flattening. The vertical adjustment system allows precise setting of roll penetration depth, ensuring optimal descaling efficiency and flatness across various strip thicknesses and yield strengths.

Key Advantages

.Micron-Level Precision: The vertical guidance system eliminates side-thrust clearance, ensuring high-linearity roll gap control. This guarantees uniform descaling pressure across the entire strip width, preventing issues like incomplete descaling on one side or poor shape quality.

.Rapid Cassette Change: Designed for quick change-out, spare cassettes can be pre-assembled and preset offline. A complete roll changeover takes only minutes, drastically reducing maintenance downtime and boosting line productivity.

.High Rigidity & Impact Resistance: Once adjusted, a hydraulic or mechanical locking system securely clamps the cassette within the rigid mill stand. This robust structure absorbs impact loads during head/tail threading of hot-rolled strips, protecting the precision screw threads from damage.

.User-Friendly Operation: Integrated with a PLC automation system, operators can select preset recipes based on strip specifications via the HMI. Real-time monitoring of position and hydraulic pressure simplifies operation and reduces reliance on manual skill.

Applications

Ideal for Hot Annealing and Pickling Lines (HAPL), Carbon Steel Pickling Lines, and Continuous Rolling Mills. This machine is particularly effective for processing difficult-to-deform high-alloy steels (e.g., Duplex Steel, Super Austenitic Stainless Steel), solving the challenge of removing dense, adherent oxide scales while maintaining stringent flatness tolerances.
